April 26, 2026

There are two fundamental ways to construct a traditional Japanese knife. One uses two different materials — a hard steel core laminated to softer iron — and has been the standard for professional kitchen knives for centuries. The other uses a single material throughout, subjects it to one of the most demanding heat treatments in all of blade-making, and produces a knife that can cost tens of thousands of dollars and that even professional cooks rarely own.

Understanding the difference between these two constructions — kasumi and honyaki — is not just technical knowledge. It is the key to understanding what a Japanese knife is at its most fundamental level: what it is made of, what that construction makes possible, and what it asks of the person who uses it.

Kasumi — the word refers to the misty, hazy appearance of the blade’s flat face — is the construction used in the vast majority of professional Japanese knives. It is not a compromise or a lesser option. It is a deliberate engineering solution that has been refined across centuries of professional use.

In kasumi construction, the knife is built as a laminate: a core of hard steel — the material that will form the cutting edge — is forged together with a layer of softer iron that forms the body of the blade. The hard steel provides the sharpness and edge retention. The soft iron provides resilience, makes the blade easier to sharpen (since only the hard steel edge needs to be brought to its finest state), and gives the knife a degree of flexibility that pure hard steel cannot provide.

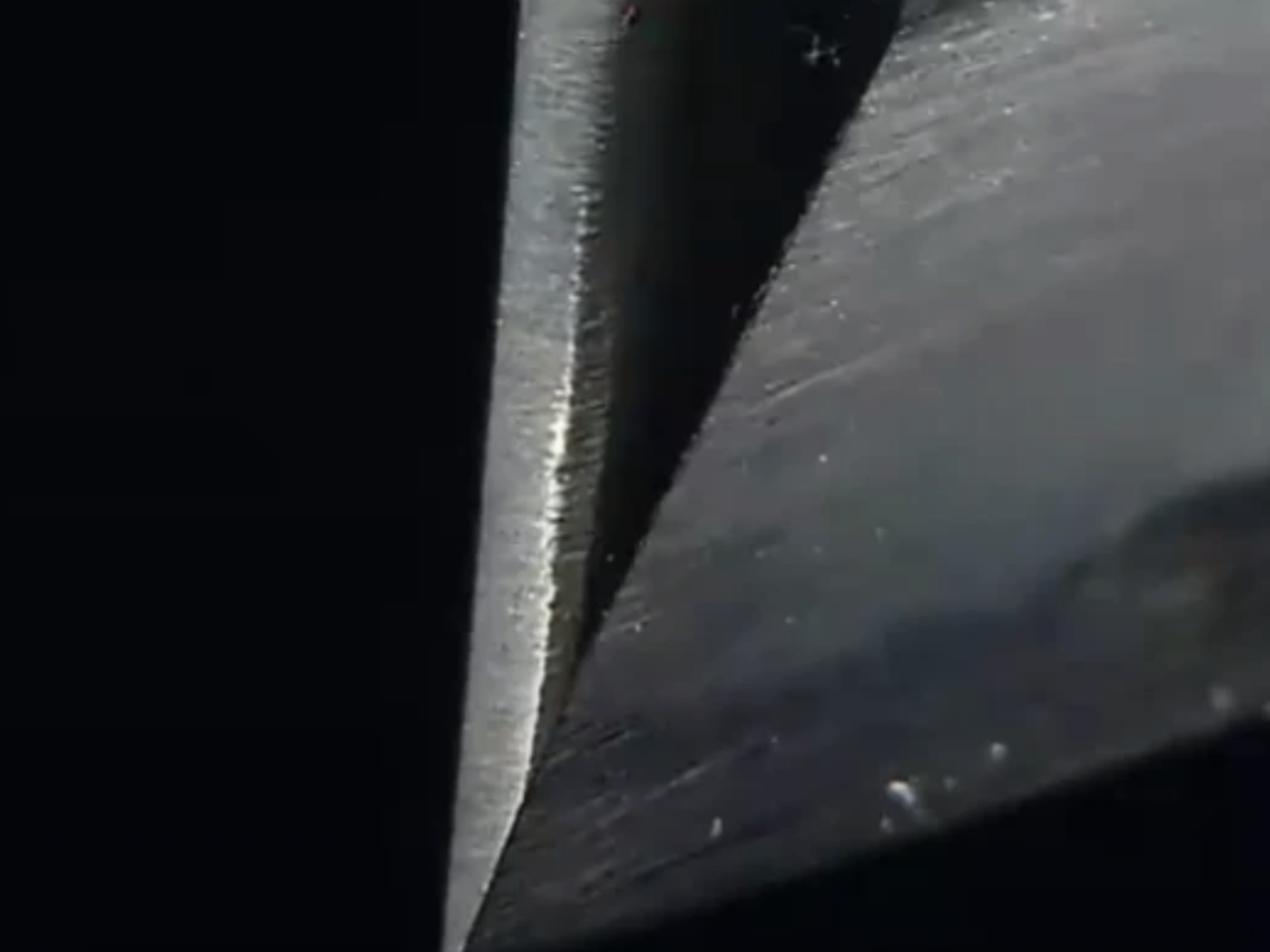

The visual result of this construction is the characteristic two-tone appearance of a kasumi blade: the polished, slightly reflective cutting bevel of hard steel, and the matte, softer-looking flat face of iron. The line between them — the kasumigakari, the boundary where the two materials meet — is visible on the blade’s face and is one of the most recognizable features of traditional Japanese knife aesthetics.

This laminate construction enables something crucial for maintenance: when the knife is sharpened, the soft iron on the back face can be worked relatively easily. The sharpener does not need to remove hard steel from both faces — only from the bevel side. This makes the sharpening process more efficient and more accessible to a wider range of skill levels.

The laminate construction of kasumi, despite its advantages, introduces a physical reality that every professional who uses a long kasumi knife eventually encounters.

Two different materials — hard steel and soft iron — have different coefficients of thermal expansion. When they are heated during forging and then cooled, they contract at slightly different rates. When the laminate is in use and subjected to temperature changes — even the gradual changes of a working kitchen — these differential expansion rates create internal stresses in the blade.

The result, in a long blade, is curvature.

A 30-centimeter kasumi yanagiba, even when correctly made, may have a measurable deviation of 2 millimeters or more between the heel and the tip. For a short knife, this is negligible. For a long sashimi knife where the straightness of the stroke directly determines the evenness of each slice, this curvature is visible, felt, and significant. Professional cooks who use long kasumi yanagiba learn to work with this characteristic — to compensate for the blade’s natural curve in their cutting motion — but it remains an inherent feature of the construction that cannot be fully eliminated.

This is not a defect. It is the physical consequence of using two materials with different properties together. Every kasumi knife has it to some degree. The skill of the maker minimizes it. The skill of the user manages it. But it does not go away.

The advantages of honyaki are not only structural. They extend to the metallurgy of the steel itself.

Here a Japanese blacksmith’s direct observation is instructive. When laminating steel and soft iron together, the forging temperature must be raised to approximately 1,000 degrees Celsius or higher to achieve a proper weld between the two materials. At these temperatures, two things happen to the steel that are not beneficial: carbon begins to migrate out of the steel’s surface, reducing the carbon content that gives the steel its hardness and edge-holding properties. And the metal’s grain structure begins to coarsen — the microscopic crystals within the steel grow larger, which reduces the fineness of the edge the steel can ultimately achieve.

The skilled blacksmith minimizes these effects through experience and technique. But they cannot be eliminated entirely. They are the physical consequence of raising the steel to the temperatures that lamination requires.

Honyaki construction requires no lamination. There is no weld to achieve, no second material to bond. The entire knife is made from a single piece of steel, and that steel can be worked at lower temperatures — 800 to 850 degrees Celsius, rather than the 1,000 or more that lamination requires. At these lower temperatures, carbon loss is minimized and grain coarsening is reduced. The steel arrives at the heat treatment stage in a better condition than kasumi steel, which has been subjected to the higher temperatures of welding.

The result is a steel that has more of its original properties intact — finer grain, more consistent carbon content — and that can therefore be refined to a higher level of edge quality.

The advantages of honyaki construction come with a clear trade-off: honyaki is significantly harder to sharpen than kasumi.

In kasumi, the soft iron of the back face can be worked easily on the whetstone. Only the hard steel cutting bevel requires the skill and time of careful sharpening. In honyaki, the entire blade — back face included — is hard steel. Every part of the knife that contacts the whetstone requires the attention and technique appropriate to hard steel. The sharpening that takes a skilled practitioner a certain amount of time on a kasumi blade may take significantly longer on a comparable honyaki.

For a professional cook who sharpens daily and has developed the skill and patience for hard steel, this is manageable. For a cook who sharpens infrequently or whose technique is still developing, honyaki’s sharpening demands can outstrip their ability to realize the blade’s performance potential. A honyaki knife that is not properly sharpened does not perform better than a properly sharpened kasumi. It performs worse — the advantages of the superior steel and construction are locked away behind an edge that has not been given what it needs.

This is why professional cooks — even those who have used knives for decades — often choose not to own a honyaki. Not because it is not the better construction. Because the gap between its potential and what they can reliably achieve on the stone is wider than the gap between a well-maintained kasumi and their best work. The kasumi, properly cared for, delivers what they need. The honyaki promises more, but asks more in return.
